Westend

 Germany

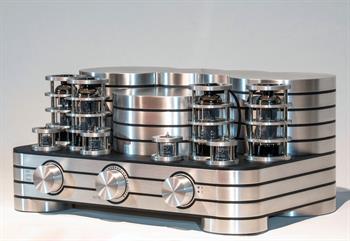

Monaco Mk2
Integrated Tube Power Amplifier
Price:
$32,900
Product Features:

Standard Finish: $32,900
- hand grinded aluminium or powder coated finish

Premium Finish: $36,400
- polished aluminium

Premium Finish: $55,900
- polished 24k gold

 Custom surfaces and colors available upon request


What happens when you try to develop the ultimate tube amplifier without looking at the costs? The result is something like the MONACO. An integrated amplifier with tube amplification in a modern push/pull circuit design and a whopping 100 watts into four ohms. With this reservoir of power, the MONACO drives almost all conventional loudspeakers with aplomb, making it the serious alternative to the best preamp/power amp combinations.

As usual at WESTEND AUDIO SYSTEMS, we place the highest value on the best possible components. But also on the finest cabinet materials and surfaces. The MONACO is created in our manufactory in the heart of Munich. Everything here is handmade. We work with specialists who have been perfecting case finishes for over 20 years and it shows. The MONACO cabinet is raised layer by layer in resonance-optimized aluminum rib construction. The build quality and surface finish are outstanding and can compete with the best on the world market.

Of course, this also applies to the sound. Thanks to selected tubes, fully balanced circuitry, oversized transformer and new, sophisticated switching network design, the MONACO is not only in the ears of AUDIO editors one of the most powerful sounding tube amplifiers in the world, – we also know nothing better in the push-pull sector.

The E130L, which we use in the MONACO as a power tube, was actually developed for military purposes and bred for robustness and long life. For the audio range it is therefore actually underpowered – and desirably oversized. We use two E130L tubes each in push-pull mode and thus achieve a stable 100 watts per channel. And because of the high manufacturing quality, the E130L has its distinctive character compared to other top tubes in the world, but no intrusive inherent sound. This allows us to choose exactly the tuning that is close to our hearts, but difficult to achieve with tube amplifiers: The MONACO conjures up a lifelike live sound image and sounds lively clean and tight even in the deepest bass.

Product Specifications:

Type:
Tube integrated amplifier


Frequency range:
10 Hz - 40 kHz (-3 dB)


Distortion Factor (THD):
1% (1 kHz)


External Voltage Distance:
> 95 dB


Input Impedance (XLR):
17.6 kOhm


Tubes:
(4) ECC82 input
(4) E130L output


Equipment:
Remote Control

Bias:

automatic

Inputs:
(2) RCA
(3) XLR


Outputs:
(1) RCA (fixed)
(1) XLR (variable)


Circuit:
class AB Push-Pull


Speaker Impedance:
<= 4 Ohm


Power Output:
100 wpc (RMS)

Power consumption:
170 Watts


Dimensions:
18.5 × 14.7 × 8.8 inches (W×D×H):
(depth including the speaker terminals)


Weight:
101 pounds
(chrome & gold finish weights more)
