$156,500 ~ standard finish ~ high polish black or white polyester
$170,600 ~ premium finish ~ high polish veneer
$184,200 ~ premium finish ~ carbon fiber
-------------------------------------------------------------------------
$39,200 ~ optional electronic crossover ~ Emperor DSP-X
$6,200 ~ optional roller base plate ~ set of 2

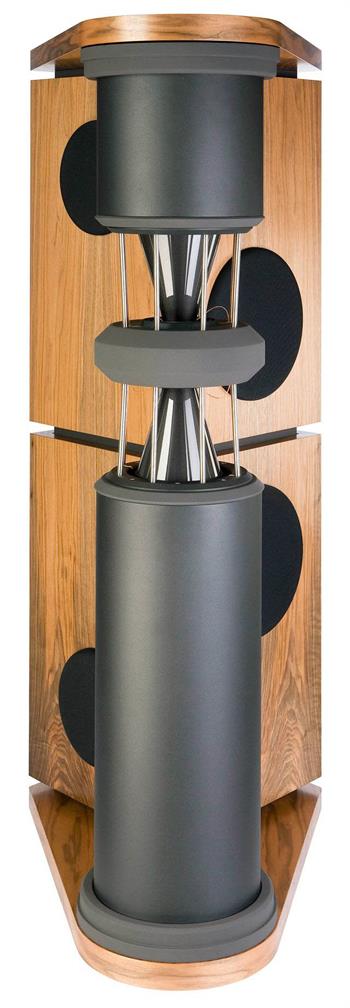

PQS 302
The PQS-302 is based on our PQS-402 and is designed to enable the quality of reproduction provided by its much larger stable-mate to be enjoyed in medium sized rooms. It is an exceptional loudspeaker, producing realistic and detailed three-dimensional stereo imaging, excellent dynamics and of course our trademark fast, deep, and well-controlled bass. Naturally, it also offers the finesse and transparency that all German Physiks loudspeakers are famous for. It combines these attributes with the ability to produce sound levels up to 112dB.
The PQS-302 uses two DDD drivers and two 8-inch long-throw woofers to provide the exceptional dynamics that enhance the sense of listening to a real performance.
The PQS-302 uses two DDD drivers to provide a very wide dynamic range, while retaining their excellent transparency and resolution. The DDD drivers cover the range from 170Hz to 24kHz, eliminating the mid-band crossover point found in conventional designs. Combined with a new bass system design, this gives improved clarity, revealing more of the music‘s subtle nuances. It goes without saying that the PQS-302 also offers the finesse that all German Physiks loudspeakers are famous for. Even more impressive is that it combines these attributes with an ability to produce output levels up to 112dB for a more realistic recreation of live music like dynamics.
Fast And Extended Bass
The outward appearance of the PQS-302 bass system is similar to that of the PQS-402. Two bass cabinets are mounted one on top of the other and stand between a top and a bottom plate. None of these components is attached to the other using screws or any form of hard connection. Instead, they are held together by a system of interlocking collars. This combined with the fact that the two cabinets have different weights, as do the top and bottom plates, means that resonances are reduced to negligible levels compared to a solid structure.
A Different Approach
In order to obtain a bass response with the required speed and extension, we could not simply scale down the PQS-402 design, so we have employed a totally different approach. Each cabinet houses a single 8-inch woofer mounted on one of the forward faces, with a reflex port on the other. This provides bass with the high speed necessary to match the DDD driver, whilst also producing a well-controlled and balanced response down to 26Hz.
The heart of all German Physiks loudspeakers is the unique omnidirectional DDD driver
The German Physiks DDD driver uses a cone made of extremely thin (0.15mm) carbon fiber. This is very light, but also very rigid. Each driver is hand-built by a skilled technician in our factory in Germany. This is a painstaking process that takes 6 hours. After assembly, each driver undergoes a series of rigorous tests. It is then subject to a 96-hour pre-aging process, playing specially selected music at high level. Finally, it is retested and put together with another driver to form a matched pair.
The DDD driver has two key distinguishing features
1. It is omnidirectional, meaning that it radiates the sound evenly around it.
2. It has an exceptionally wide operating range. In the PQS-302 it covers the range from 170Hz up to 24kHz – over 7 octaves.
This extremely wide range is achieved by the use of 3 modes of radiation
Pistonic radiation
Bending wave radiation
Modal radiation
By comparison, most loudspeakers use drivers that only use pistonic radiation. These have a much narrower operating range and as the frequency rises, they tend to concentrate their energy into a progressively narrowing beam.
The DDD driver’s omnidirectional radiation characteristic and its very wide operating range, together with several other key features give the following important advantages to all German Physiks designs and is what sets them apart:
- Exceptionally coherent and natural sound
- Realistic stereo images more like those you experience in the concert hall
- Stereo imaging enjoyable in almost all positions in the room
- Exceptional dynamics
- Accurate portrayal of musical instruments tonal characteristics
- Quick and easy to set up
- The DDD driver is less likely to excite cabinet vibrations
- Physically extremely rugged
- High Quality Input Terminals
- Adjustable High Frequency Output
- Low Resonance Cabinet Design Enhances Transparency
Designed for a Lifetime of Listening Pleasure
As you would expect from a German product, the quality of construction and reliability are first class. We use the same quality of parts in the Borderland MK IV as in our reference products, where we design for a minimum life expectancy of 25 years.
For this reason, we have selected highly corrosion resistant V4 grade stainless steel for the DDD driver support pillars, terminal mounting plates and all the screws.
Meticulous care and attention are paid during the manufacture of the Borderland MK IV. Prior to assembly all components and materials are subject to a rigorous inspection. We also carry out detailed inspections at each stage of the manufacturing process. We can afford to do this as we build our products by hand in small batches. After assembly, the performance of each loudspeaker is measured. Then it is burnt in for at least 12 hours and measured again. Once the burn process is complete each loudspeaker is given a final detailed physical inspection before being packed.
Hand Finished For Ultimate Quality
Because the look of our products is as important as the sound, all cabinets are hand built and finished in Germany by skilled cabinet makers for the best possible furniture grade finish. They are built in small batches, so that they can maintain a consistently high level of quality. Nothing is rushed.
