$290,600 ~ standard finish ~ high polish black or white polyester
$305,100 ~ premium finish ~ high polish veneer
$329,900 ~ premium finish ~ carbon fiber
-------------------------------------------------------------------------
$39,200 ~ optional electronic crossover ~ Emperor DSP-X
$7,450 ~ optional roller base plate ~ set of 2

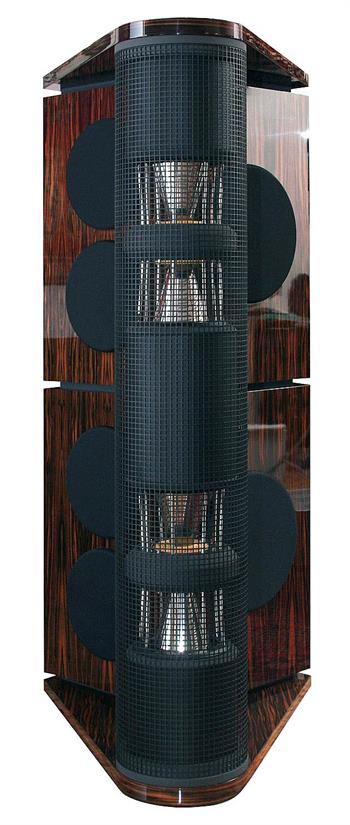

Loreley MK III
The Loreley MK III is designed to bring you closer to the “concert experience” that our flagship Gaudi provides, but in a smaller cabinet and at a lower price. Like the Gaudi, the Loreley MK III is capable of reproducing sound levels up to 120dB, which allows live music dynamics to be more realistically reproduced. At the same time, it can accurately reproduce the low-level detail and delicate nuances that are the essence of a musical performance.
The Loreley MK III uses four DDD drivers, two 12-inch woofers and four 10-inch passive radiators to produce a truly emotionally involving musical performance.
The Loreley MK III is designed to be bi-amped using an active crossover. This means that it uses two power amplifiers to directly drive each loudspeaker: one for the DDD drivers and one for the woofers. The signal split for each section is performed at low level using the new German Physiks Extreme digital active crossover, which is supplied with the Loreley. This is pre-configured at the factory, so all the customer has to do is connect it into the system and switch it on. The customer may if they wish manually adjust the crossover’s settings. A number of set-up memories are provided to allow customer set-ups to be stored and then recalled when required.
Active operation provides a much higher level of performance than is possible with a passive crossover and allows the full potential of this high-quality design to be realized.
Independent Bass Enclosures
Each loudspeaker has two large independent bass enclosures mounted one on top of the other, which stand between a top and a bottom plate. None of these components is attached to the other using screws or any form of hard connection but are held together by an interlocking collar arrangement. This greatly reduces resonances and also makes the column more difficult to topple. Each enclosure is fitted with a 12-inch inverted dome driver that has a maximum excursion of 3 inches. Distortion levels are typically a tenth of those of conventional 18-inch sub woofers at comparable output levels. In addition, their acceleration and transient responses are far superior due to the immense magnetic forces generated by the massive, rare-earth magnets we use and to the very high stiffness of the dome diaphragms. The net result is a system with a very extended and very clean low frequency response, that is also capable of prodigious output levels, exceeding 110dB at 18Hz.
Freedom from Power Compression
Power compression, the reduction in dynamic range caused by heating of the voice coil, is much reduced over conventional woofer drivers due to the ultra-wide, under-hung voice coil and triple magnet structure we employ. Power handling is also correspondingly greatly increased over that of conventional designs.
The heart of all German Physiks loudspeakers is the unique omnidirectional DDD driver
The German Physiks DDD driver uses a cone made of extremely thin (0.15mm) carbon fiber. This is very light, but also very rigid. Each driver is hand-built by a skilled technician in our factory in Germany. This is a painstaking process that takes 6 hours. After assembly, each driver undergoes a series of rigorous tests. It is then subject to a 96-hour pre-aging process, playing specially selected music at high level. Finally, it is retested and put together with another driver to form a matched pair.
The DDD driver has two key distinguishing features
1. It is omnidirectional, meaning that it radiates the sound evenly around it.
2. It has an exceptionally wide operating range. In the Loreley MK III it covers the range from 180Hz up to 24kHz – over 7 octaves.
This extremely wide range is achieved by the use of 3 modes of radiation
Pistonic radiation
Bending wave radiation
Modal radiation
By comparison, most loudspeakers use drivers that only use pistonic radiation. These have a much narrower operating range and as the frequency rises, they tend to concentrate their energy into a progressively narrowing beam.
The DDD driver’s omnidirectional radiation characteristic and its very wide operating range, together with several other key features give the following important advantages to all German Physiks designs and is what sets them apart:
- Exceptionally coherent and natural sound
- Realistic stereo images more like those you experience in the concert hall
- Stereo imaging enjoyable in almost all positions in the room
- Exceptional dynamics
- Accurate portrayal of musical instruments tonal characteristics
- Quick and easy to set up
- The DDD driver is less likely to excite cabinet vibrations
- Physically extremely rugged
- High Quality Input Terminals
- Adjustable High Frequency Output
- Low Resonance Cabinet Design Enhances Transparency
Designed for a Lifetime of Listening Pleasure
As you would expect from a German product, the quality of construction and reliability are first class. We use the same quality of parts in the Borderland MK IV as in our reference products, where we design for a minimum life expectancy of 25 years.
For this reason, we have selected highly corrosion resistant V4 grade stainless steel for the DDD driver support pillars, terminal mounting plates and all the screws.
Meticulous care and attention are paid during the manufacture of the Borderland MK IV. Prior to assembly all components and materials are subject to a rigorous inspection. We also carry out detailed inspections at each stage of the manufacturing process. We can afford to do this as we build our products by hand in small batches. After assembly, the performance of each loudspeaker is measured. Then it is burnt in for at least 12 hours and measured again. Once the burn process is complete each loudspeaker is given a final detailed physical inspection before being packed.
Hand Finished For Ultimate Quality
Because the look of our products is as important as the sound, all cabinets are hand built and finished in Germany by skilled cabinet makers for the best possible furniture grade finish. They are built in small batches, so that they can maintain a consistently high level of quality. Nothing is rushed.
